APIPASS · 2025

A new design system

Translating APIPASS's identity into a modern, scalable system — and redesigning the platform's core surfaces on top of it.

Role: Research, design system, UI redesign
Company: APIPASS — iPaaS · Integration platform
Focus: Design system, UI redesign, Research

The platform's layout had become outdated. After aligning stakeholder expectations with customer feedback, I began researching how to translate APIPASS's existing identity into a new, more modern and more effective design system.

The documented system

Documentation

One library, documented end to end

The system is documented so anyone — designer, engineer or PM — can find a component, understand which tokens it consumes, and use it without asking.

Components

Design tokens

120+

Icons

Text styles

Elevations

Principles

Four rules the library never breaks

Token-driven

Nothing is hard-coded. Colour, type, spacing and elevation all resolve through named tokens.

Semantic by intent

Consumers reference roles like Text/Primary or Danger/Surface — never raw hex — so themes and tweaks stay global.

Accessible by default

Text/Primary on Surface/Default clears WCAG AA; status colours are paired with legible text tones.

One source of truth

The same tokens power Figma variables and the CSS custom properties devs ship.

Token architecture

Three tiers, one source of truth

Primitives hold the raw values. Semantic roles alias them. Components consume the roles. Change a primitive once and it lands everywhere downstream.

Tier 1

Primitives

Raw, context-free values — the full palette plus spacing, radius and stroke scales. Named for what they ARE.

Color/Red/500

Tier 2

Semantic

Roles that alias a primitive. Named for what they're FOR. This is the layer you consume.

Danger/Default

Tier 3

Component

Components bind to semantic tokens. The Alert's fill, border and text are all roles — never hex.

Alert · Danger

Tier 1 · Primitives

Colour primitives

The raw palette — 52 values named for what they are, never for where they are used.

Neutral

White

#FFFFFF

#F5F5F5

#F2F2F8

100

#E6E6E6

200

#D9D9D9

300

#C1C1CD

400

#B3B3B3

500

#757575

600

#5A5A5A

700

#2C2C2C

800

#1E1E1E

900

#121619

Brand · Indigo

500

#546193

700

#3F4D82

900

#222D57

Red · Danger

#FEE9E7

100

#FDD3D0

200

#FCB3AD

500

#EC221F

700

#C00F0C

900

#900B09

Green · Positive

#EBFFEE

100

#CFF7D3

200

#AFF4C6

400

#14AE5C

500

#009951

900

#02542D

Amber · Warning

#FFF1C2

100

#FFE8A3

500

#E5A000

600

#E8B931

800

#682D03

900

#401B01

Violet · Accent

500

#8A38F5

Tier 2 · Semantic

Colour roles

Every role points at a primitive. Consumers reference the role, so re-theming is a single edit at the alias layer.

Text

Text/PrimaryNeutral/800
Text/SecondaryNeutral/500
Text/DisabledNeutral/400
Text/On BrandNeutral/White
Text/LinkBrand/700

Surface

Surface/PageNeutral/50
Surface/DefaultNeutral/White
Surface/SubtleNeutral/75
Surface/InverseNeutral/800

Border

Border/SubtleNeutral/100
Border/DefaultNeutral/200
Border/StrongNeutral/400

Interactive

Brand/DefaultBrand/900
Brand/HoverBrand/700
Brand/MutedBrand/500
Accent/DefaultViolet/500

Danger

Danger/DefaultRed/500
Danger/HoverRed/700
Danger/TextRed/900
Danger/SurfaceRed/50
Danger/BorderRed/200

Positive

Positive/DefaultGreen/500
Positive/TextGreen/900
Positive/SurfaceGreen/50
Positive/BorderGreen/200

Warning

Warning/DefaultAmber/500
Warning/TextAmber/900
Warning/SurfaceAmber/50
Warning/BorderAmber/100

Typography

Inter, ten registered styles

One family across the product. Every style is a registered token — no ad-hoc size or weight in a design file.

Display

Inter Bold · 72 / 120% / -3%

API-PASS

Title

Inter Regular · 32 / 120% / 0

Design system

Heading

Inter Semi Bold · 24 / 120% / -2%

Component library & tokens

Subtitle

Inter Regular · 20 / 120% / 0

Roles that map to primitives

Body

Inter Regular · 16 / 140% / 0

The quick brown fox jumps over the lazy dog. 0123456789

Body Strong

Inter Semi Bold · 16 / 140% / 0

Emphasis within body copy

Body Tight

Inter Regular · 16 / 100% / 0

Dense UI text at 100% line-height

Label

Inter Semi Bold · 16 / 100% / 0

BUTTON LABEL

Small

Inter Regular · 14 / 140% / 0

Secondary and helper text

Small Strong

Inter Semi Bold · 14 / 140% / 0

Table headers & eyebrows

Measurement

Spacing, radius and stroke

An 8-point spacing scale, seven radii and two stroke weights. Anything off the scale is a bug, not a decision.

Spacing

Space/44
Space/88
Space/1212
Space/1616
Space/2424
Space/3232
Space/4848
Space/6464

Radius

Radius/none0
Radius/xs2
Radius/sm4
Radius/md8
Radius/lg24
Radius/xl32
Radius/pillfull

Stroke

Stroke/hairline · 1px
Stroke/thick · 2px

Icons: Ionicons, 24px box, 1.5px stroke, 120+ glyphs.

Elevation

Four levels, one meaning each

Shadows carry hierarchy, not decoration: controls lift 1px, cards float, modals detach, pressed states sink.

Buttons · inputs

Elevation/1 · Control

y1 · blur3 · spread1 · 15%

Cards · popovers

Elevation/2 · Card

layered y4 + y16 · 5% + 10%

Dialogs · menus

Elevation/3 · Modal

y4 · blur16 · 16%

Pressed / active

Elevation/Pressed

y1 · blur2 · 30%

Iconography

Ionicons · outline · 24px

The system uses the Ionicons outline set on a 24×24 canvas. 120+ glyphs are in use; a representative sample is shown below. Icons inherit colour from the text token beside them.

Component index

62 variant sets, grouped by intent

Components are catalogued by the job they do, with the number of published variants beside each family.

Actions & inputs

Primary button×12
Secondary button×6
Split button×2
Switch×4
Action Button×3

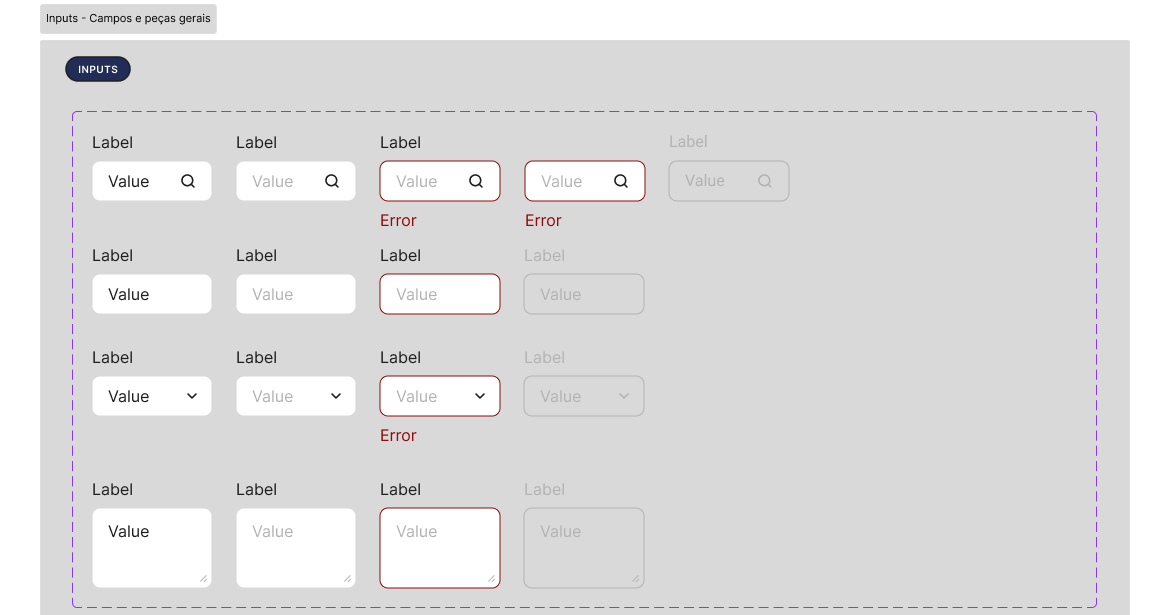

Input field×17

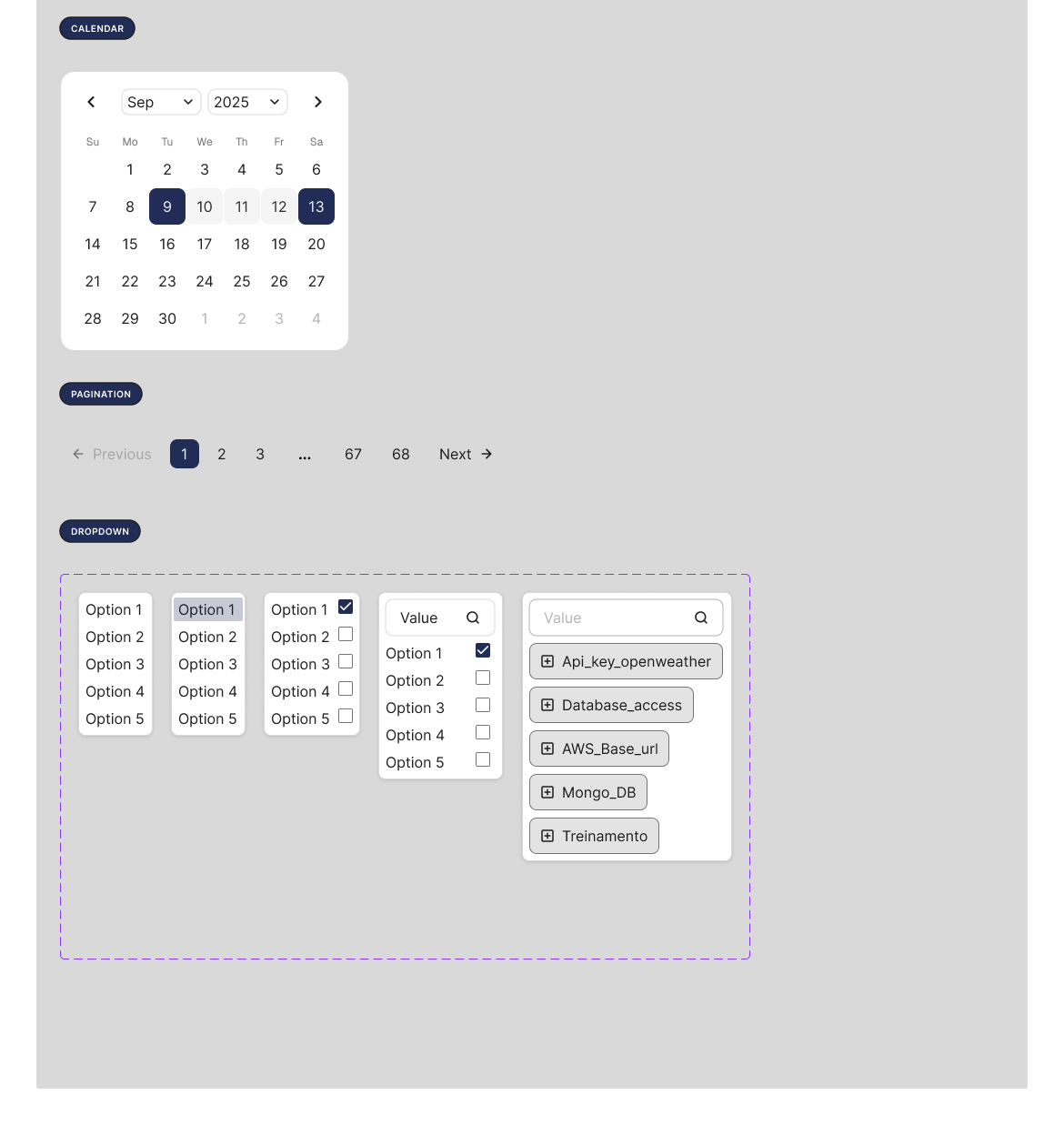

Dropdown×5
Checkbox×6
Radio button×4
Filter Chip×2
Search Field

Navigation

Side Menu×2
Top Menu×5
Menu lateral×2
Menu lateral · Item×6
Menu · Expandir×4
Navigation pill×2
Sub header pills×4
Tabs selection×6
Header Tab×2
Display option×2
Breadcrumb
Connector Menu Item×3

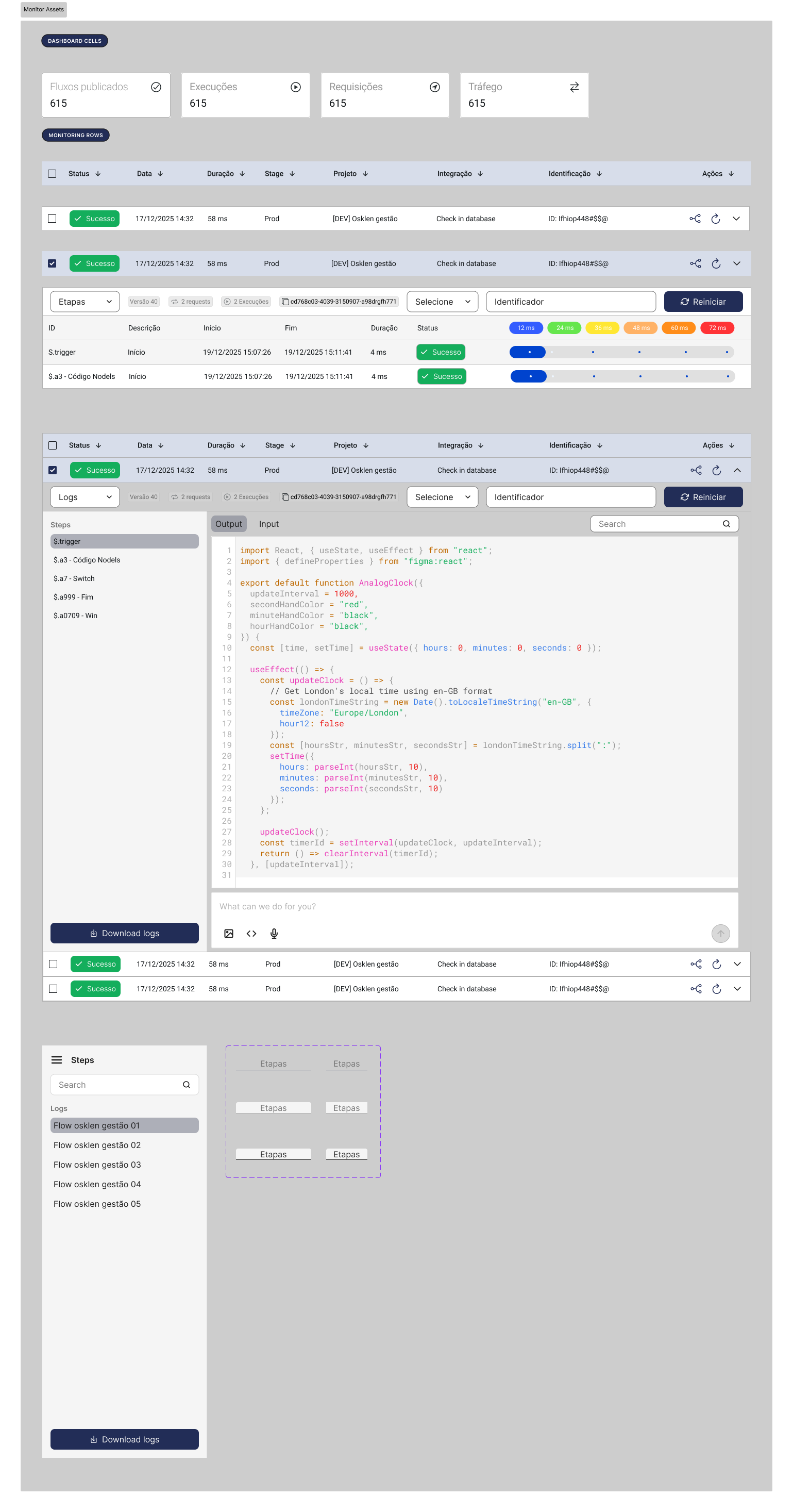

Data display

Table v2×17
Query · Row×2
Query · Card×2
Config · Field label×2
Status Dot×5
Chip · Status×5
SDS · KeyValue Row×3
Icon Tile×5
Chart type select×8
Chart displays×8

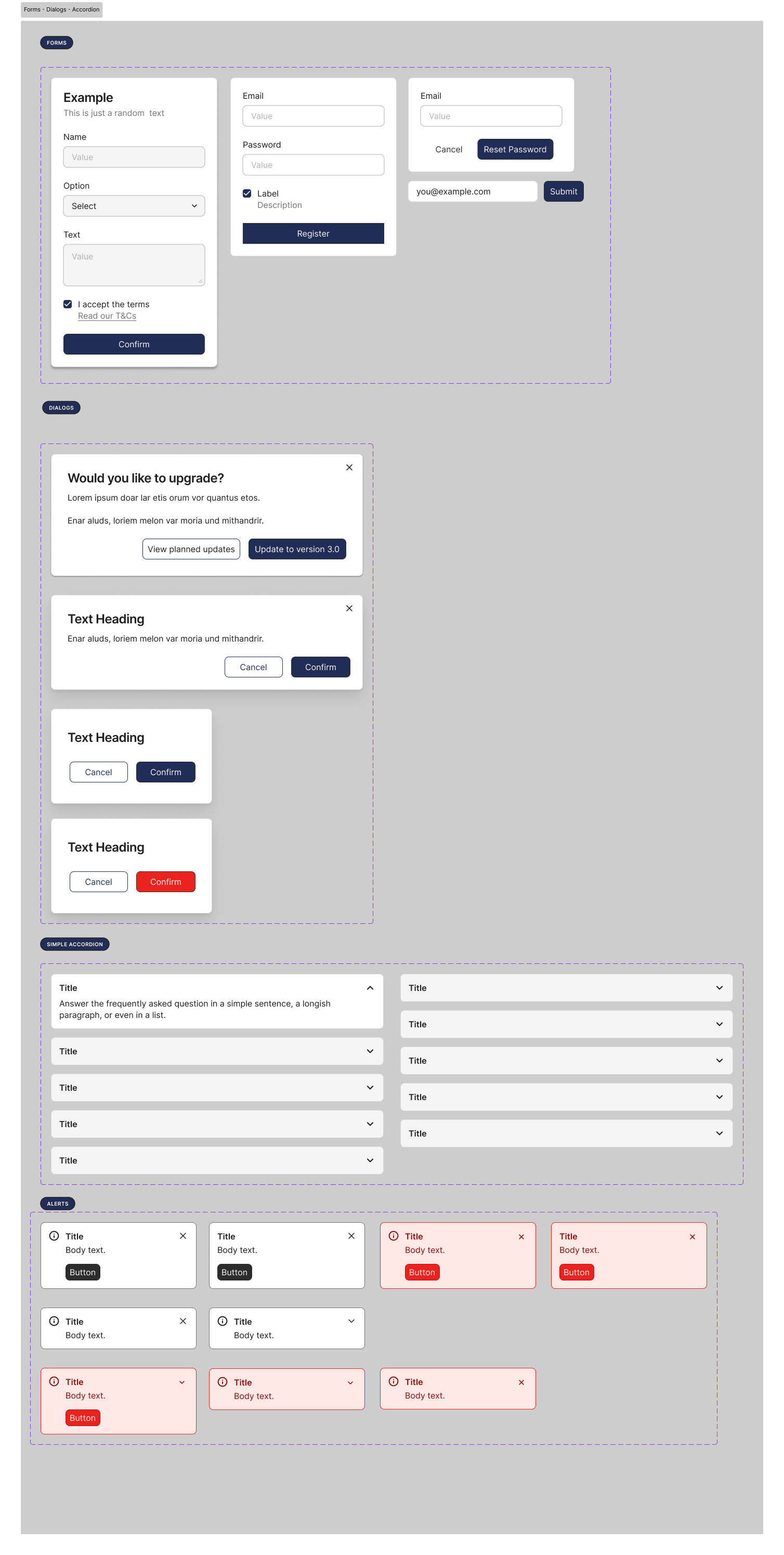

Feedback & overlays

Alert×8
Dialog×4
Forms / modal×4
Tooltip×4
Accordion×2
Loader×5
Loader animado×10
Toast
Canvas · Toast×2

Tags & badges

Tag · Brand set×20
Tag · Scheme set×12
Tag · Chave-valor
Tag · Contador
Status Dot×5

Flow & canvas (product)

Flow Node×3
Flow card×2
Port×2
Preview · Header×3
Canvas · Tile×5
Canvas · Nó×3
Canvas · Chip filtro×2
Canvas · Porta×3
Bloco de expressão×4
Expressão · Limiar×4

Typography components

Text Content Heading×2
Text Content Title×2
Text Link List×2
Text List×2

Deep dives

How each family binds to tokens

For the families engineers touch most, the documentation spells out exactly which token drives which property.

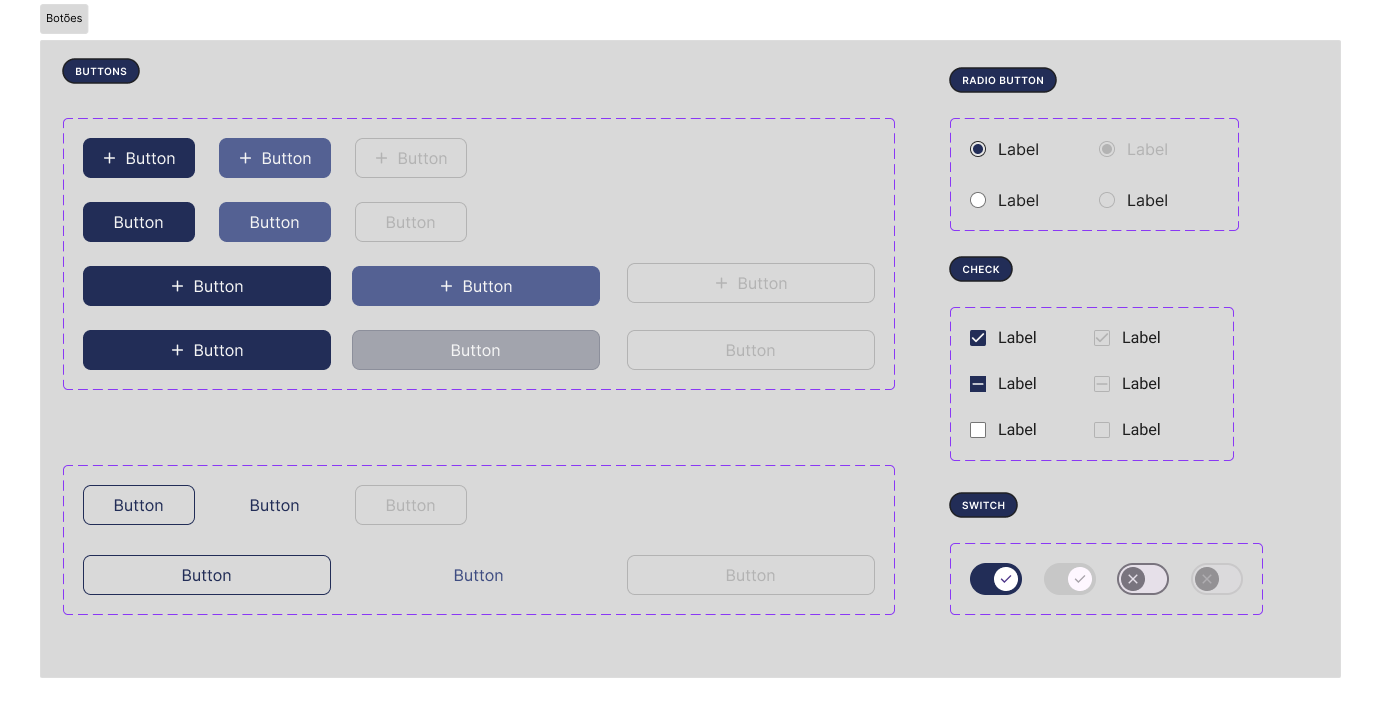

Buttons

Primary and secondary actions, shown as live instances. Sizes: normal & large. States: default, hover, disabled.

FillBrand/Default → Brand/Hover on hover
LabelText/On Brand · style Label
RadiusRadius/Control (8)
PaddingSpace/12 × Space/24 (normal) · Space/16 × Space/32 (large)
DisabledSurface Neutral/300 · Text/Disabled
ElevationElevation/1 · Control
SecondarySurface/Default · Border/Strong · Text/Primary

Buttons and tags, rendered from the tokens

The flagship families are documented as live instances, not screenshots — every fill, border and label below resolves to the tokens above.

Buttons

Primary · normal

Button

default

Button

hover

Button

disabled

+ Button

with icon

Secondary

Button

default

Button

hover

Button

large

Figma → tokens.json → CSS

The handoff is mechanical on purpose: variables export to tokens.json, tokens.json becomes custom properties, and components consume var(--token). No one retypes a hex code.

Figma Variables

source of truth

Export

Tokens Studio / REST API

tokens.json + CSS

--custom-properties

App consumes

var(--token)

Token mapping

Color/Brand/900--color-brand-900#222d57
Brand/Default--brand-defaultvar(--color-brand-900)
Danger/Surface--danger-surfacevar(--color-red-50)
Space/16--space-1616px
Radius/md--radius-md8px

Generated CSS

/* Tier 1 — primitives */
:root {
  --color-brand-900: #222d57;
  --color-red-50:    #fee9e7;
  /* Tier 2 — semantic (alias primitives) */
  --brand-default:  var(--color-brand-900);
  --danger-surface: var(--color-red-50);
  --radius-control: 8px;
}

.btn-primary {
  background: var(--brand-default);
  border-radius: var(--radius-control);
  color: var(--text-on-brand);
}

Reference semantic tokens (Brand/Default) — never raw hex or a primitive directly
Apply the registered text styles instead of manual size/weight
Stay on the scale: Space/* and Radius/* only
Bind variables so a single edit propagates everywhere
Redline in token names — “padding: Space/16”, not “16px”

Don't

Hardcode values like #222d57 or 8px
Invent one-off values (gap 10, radius 5) — extend the scale instead
Detach an instance to restyle it
Mix Roboto into an Inter system
Duplicate a component to fake a new variant

Audit

Known drift

A mature library accumulates inconsistencies. Rather than silently fixing them, the audit documents each one with a recommendation and a severity, so the team can decide and act deliberately.

Issue	What we found	Recommendation	Severity
Stray Roboto	~13 text nodes use Roboto inside an Inter system	Re-point to Inter / the text styles	Medium
Material defaults	Leftover MD3 purples (#9747ff, #fef7ff, #79747e) & Roboto from annotation components	Strip annotation artifacts from shipping components	Medium
Duplicate sets	Two Query/Row, duplicated Canvas/* sets, two Tag sets (20 & 12)	Consolidate to one source per component	Medium
Off-grid spacing	gap 10 and padding 11 break the 4-pt grid	Snap to Space/8 or Space/12	Low
Rogue radii	5px and 23px appear alongside the scale	Snap to Radius/sm (4) and Radius/lg (24)	Low
Pill radius	Both 100 and 9999 used for fully-round	Standardise on Radius/pill	Low
Icon stroke	1.6px leaks from Ionicons defaults (57×)	Accept as icon-intrinsic or normalise to 1.5	Low
Generic names	“Component 1”, “Model8” obscure intent	Rename semantically (Alert, etc.)	Low

Try it

Interactive states

The same tokens, wired up: hover, focus, press and select these controls to see the states the system specifies.

Buttons

Hover and hold to see Brand/Hover and the pressed elevation.

Switch · on

Rules that hold it together

01One component, many variants — variation lives in properties, never in a duplicated frame.
02Four breakpoints, one collapse order: 1440, 1280, 1024, 768.
03Status is always colour plus text, never colour alone.
04Every value comes from a token — no loose hex codes, spacings or radii in a spec.
05Every state is drawn: default, hover, active, disabled, loading, error and empty.
06Copy is written in the spec, not left to implementation.

Deliverables

Handed to engineering, ready to build

All the tokens, components and variables were handed off for the engineering team to build the company's new interface.

Tokens

99 variables across colour, type, spacing, radius and elevation — exported as tokens.json and CSS custom properties.

Components

62 variant sets published with every state drawn, so engineers build from the spec instead of guessing.

Documentation

A living document generated from the file itself: usage rules, token mapping, do / don't and the audit trail.
